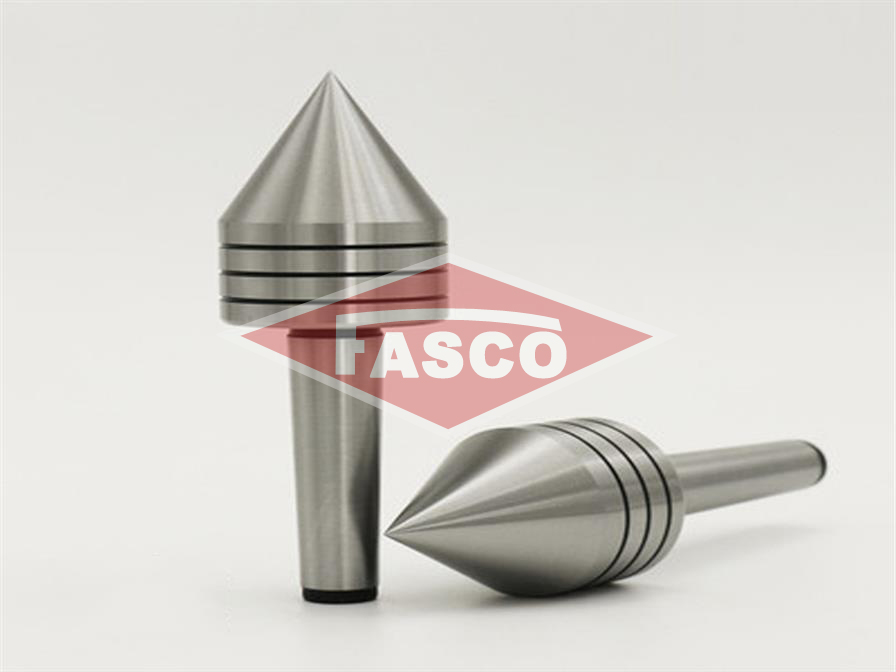

HEAVY DUTY LIVE CENTRE (REVOLVING CENTRE) - 11234
Made from special alloy steel, Hardened and Precision ground. Designed for general Turning work and for accurate work holding in conventional or CNC lathes.
| Length of Point(MM) | Length of Point(Inches) | DIA MM | DIA Inches | DIA of Point(Inches) | DIA of Point(MM) | Morse Taper | Standard Packing |
|---|---|---|---|---|---|---|---|
| 120 | 4.13/16 | 40 | 1.9/16 | 1116 | 18 | MT-1 | 40 |
| 150 | 6 | 50 | 2 | 2732 | 21 | MT-2 | 30 |
| 175 | 7 | 60 | 2.3/8 | 1516 | 24 | MT-3 | 16 |
| 190 | 7.1/2 | 62 | 2.1/2 | 1.18 | 28 | MT-4 | 12 |
| 241 | 9.1/2 | 75 | 3 | 1.12 | 36 | MT-5 | 6 |
| 324 | 12.3/4 | 100 | 4 | 2.14 | 56 | MT-6 | 2 |
