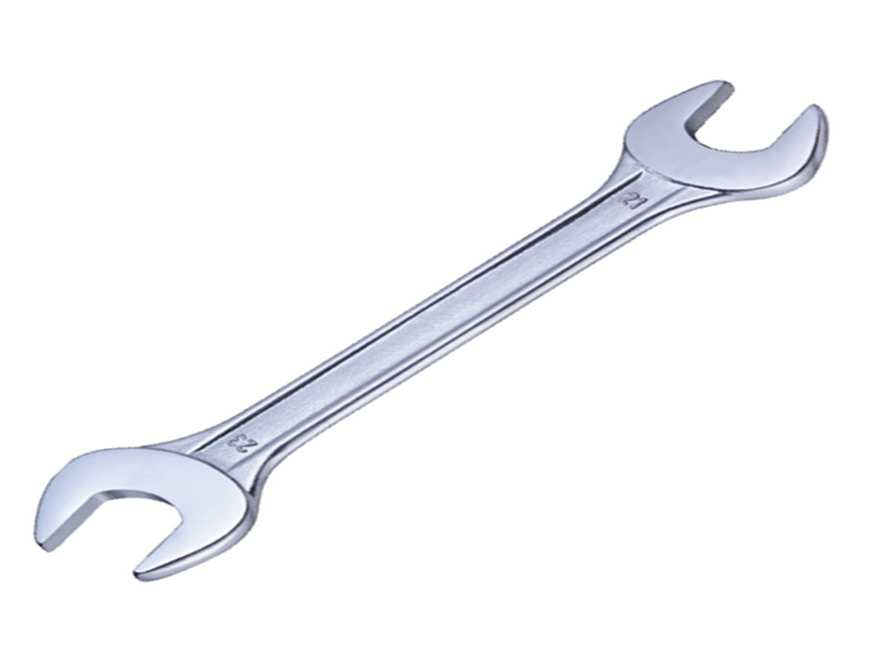

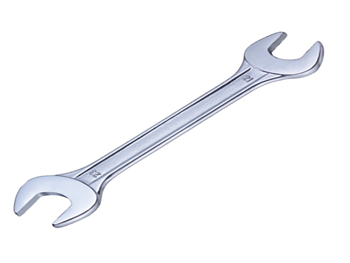

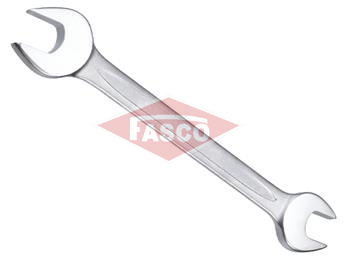

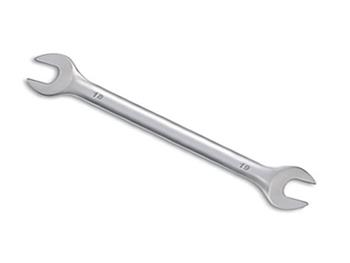

DOUBLE OPEN END-CRV Steel - 11015

These tools are drop forged and are made of high quality Chrome Vanadium Steel. The manufacturing process is perfected to achieve the desired strength and rigidity as per DIN standards.

Size (mm) Size (inch) Length (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
6 x 7 1/4 x 5/16 123 1000 24 25.5
8 x 9 5/16 x 11/32 137 600 19.2 21
10 x 11 3/8 x 7/8 153 400 20 21.5
12 x 13 7/16 x 1/2 173 300 20.7 22
14 x 15 1/2 x 9/16 187 200 19 20.5
16 x 17 19/32 x 11/16 202 150 18.9 20.5
18 x 19 5/8 x 3/4 221 100 17.3 19
20 x 22 13/16 x 7/8 236 100 22.3 24
24 x 26 15/16 x 1 265 60 23.4 25
25 x 28 1 x 1.1/8 275 40 18.8 20.5
30 x 32 1.3/16 x 11.4/4 300 40 22.4 24


No. of pcs./set Size (mm) Qty./Ctn. (pcs.) Net Wt. (kgs) Gr.Wt. (kgs)
6 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17 60 26.1 27.5
8 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17. 18 x 19, 20 x 22 20 17.5 19
12 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19, 20 x 22, 21 x 23, 24 x 27, 25 x 28, 30 x 32 10 25.65 27
